Tire Inflator Chuck: Replacement Adapters, Lock-On Chucks and Gauge Picks
A tire inflator chuck is the small end piece that seals onto the tire valve. The right replacement depends on whether you have a twist-on portable inflator hose, a hose-barb repair, a 1/4-inch NPT compressor line, or a full inflator gauge.
A tire inflator chuck is the part that connects your tire inflator, air compressor hose, or inflator gauge to a tire valve. If your current chuck leaks, slips off, or takes too long to screw onto a Schrader valve, the best replacement is usually a lock-on adapter for twist-on portable inflators, a hose-barb chuck for hose repair, or a 1/4-inch NPT chuck for compressor accessories.
Quick Answer
For most portable inflators with a screw-on hose, choose a tire inflator chuck adapter that converts the twist-on end to a lock-on Schrader chuck. For hose repair, choose a 1/4-inch ID hose-barb chuck. For shop compressors, choose a 1/4-inch NPT air chuck. For pressure control, buy a complete tire inflator with gauge instead of only a chuck.
LUMITECO Locking Hose Adapter
$7.99 · 4.5 stars
LUMITECO 1/4" Barb Chuck
$7.99 · 4.6 stars
Chuck Mates Speed Clip
$14.99 · 4.6 stars
AstroAI 3-250 PSI
$23.99 · 4.6 stars
Price and ratings were captured from the provided product data and may change.
What Is a Tire Inflator Chuck?
A tire inflator chuck is the connector that seals onto a tire’s Schrader valve so air can move from a tire inflator, compressor hose, or gauge inflator into the tire. It is different from the pump motor, pressure gauge, hose, quick coupler, and compressor fitting. The chuck is small, but it decides whether inflation is quick, hands-free, and leak-resistant.
If you need a deeper explanation of chuck types, start with Revviso’s air chuck guide. If you already know you need a ranked standalone air chuck, compare the broader list in our best tire air chuck guide.
Best Tire Inflator Chuck Picks by Use Case
The best tire inflator chuck depends on the connection you are replacing. A twist-on portable inflator adapter is not the same thing as a hose-barb repair chuck, and neither is the same as a 1/4-inch NPT compressor chuck. Use the list below to match the product to the problem.
| Use case | Best match from product data | Why it fits | Important limitation |
|---|---|---|---|
| Portable inflator twist-on conversion | LUMITECO Locking Tire Chuck with Rubber Hose | Designed to convert screw-on or twist-on tire inflator hoses to lock-on connection. | Product data says it is only an inflator hose adapter, not for connecting directly to a tire inflator or pump. |
| Portable inflator hose repair | LUMITECO 1/4" Lock On All Metal Air Chuck | Uses a 1/4" ID hose-barb end and includes worm gear hose clamps. | Product data says use under 200 PSI and heavy truck/vehicle is forbidden. |
| Quick-connect inflator clip | Chuck Mates Premium Quick-Connect Accessory | Listed as an inflator speed clip for standard Schrader valves. | Thread size is listed as 8V1 standard Schrader valve, not 1/4" NPT. |
| Air compressor tire inflator chuck | JACO Lightning S2 Closed Flow | 1/4" F-NPT, closed flow, quick-release, and standard Schrader compatibility are listed. | Product data says not for 12-volt inflators and says open flow is for pneumatic tire inflators. |
| Tire inflator chuck with pressure gauge | AstroAI Digital Tire Pressure Gauge with Inflator | Includes straight locking chuck, gauge, hose, and bleed valve in one unit. | It replaces the whole inflator gauge assembly, not just the chuck end. |
| Dual chuck tire inflator | Milton S-506 Dual Head Inflator Gauge | Dual-head chuck, 15-inch hose, and 10-160 PSI gauge are listed. | It is a full analog inflator gauge, not a small replacement adapter. |
Tire Inflator Chuck Comparison Table
Use this table when you are deciding whether to buy a small replacement chuck or replace the full inflator/gauge tool. The products below were selected because the JSON data directly mentions tire inflator adapters, locking chucks, quick-connect inflator accessories, compressor attachments, or gauge inflators.
Price and ratings were captured from the provided product data and may change.
| Product | Best for | Connection / fit from data | Pressure / gauge details | Price / rating | CTA |
|---|---|---|---|---|---|
| LUMITECO Locking Tire Chuck with Rubber Hose | Twist-on portable inflator conversion | 0.305"x32TPI standard US fine thread; Schrader; 9.25" hose | No gauge included | $7.99 / 4.5 out of 5 stars (4,463) | Check price |
| LUMITECO 1/4" Lock On All Metal Air Chuck, 2-Pack | Hose-barb repair for portable tire inflators | 1/4" ID hose barb; lock-on clamp; open flow | Maximum pressure listed as 200 PSI | $7.99 / 4.6 out of 5 stars (1,877) | Check price |
| Chuck Mates Premium Quick-Connect Accessory | Schrader speed clip for inflators | 8V1 standard Schrader valve thread; brass; quick-connect style | No gauge included | $14.99 / 4.6 out of 5 stars (797) | Check price |
| JACO Lightning S2 Quick-Connect Air Chuck | Closed-flow compressor airline chuck | 1/4" F-NPT; standard Schrader; closed flow; quick-release | Max pressure listed as 160 PSI in product description | $24.99 / 4.6 out of 5 stars (126) | Check price |
| AstroAI Digital Tire Pressure Gauge with Inflator | Complete gauge inflator with chuck | Standard Schrader; straight locking chuck; hose; bleed valve | 3-250 PSI digital gauge listed | $23.99 / 4.6 out of 5 stars (34,450) | Check price |
| Milton S-506 Dual Head Tire Inflator Gauge | Dual chuck tire inflator and shop gauge | Dual-head chuck; full-swivel chuck; 15" hose | 10-160 PSI analog gauge listed | $55.83 / 4.7 out of 5 stars (4,654) | Check price |
Product Notes and Compatibility
LUMITECO Locking Tire Chuck with Rubber Hose
Best twist-on inflator adapter Schrader
This is the most direct match for a portable tire inflator chuck replacement when your problem is a slow screw-on end. The product data says it is designed to convert a screw-on or twist-on air chuck to a lock-on air chuck, using a 0.305"x32TPI standard US fine thread and a 9.25-inch hose.
- ASINB07MX882J8
- BrandLUMITECO
- Price$7.99
- Rating4.5 out of 5 stars (4,463)
- Designed for twist-on to lock-on conversion.
- Product data lists Schrader valve compatibility.
- Includes a nylon-wrapped rubber hose and brass connection fitting in the description.
- Product data says it is only an inflator hose adapter.
- Not for connecting to a tire inflator or pump directly, according to the listing.
- No pressure gauge is included.
Best for: Replacing an annoying twist-on portable inflator connection with a thumb-press lock-on chuck, when your existing hose thread matches.
LUMITECO 1/4" Lock On All Metal Air Chuck, 2-Pack
Best hose-barb replacement Not for heavy trucks
This 2-pack is better when you are repairing or replacing the chuck at the end of a small portable tire inflator hose. The product data lists a 1/4" ID hose-barb end, open-flow lock-on clamp, two worm gear hose clamps, and all-metal construction.
- ASINB076F2PL5H
- BrandLUMITECO
- Price$7.99
- Rating4.6 out of 5 stars (1,877)
- 1/4" ID hose-barb end is listed for hose repair.
- Open-flow lock-on clamp supports hands-free inflation.
- Comes as a 2-pack with hose clamps.
- Product data says use under 200 PSI.
- Product data says heavy truck/vehicle forbidden.
- Requires hose-barb installation rather than a simple screw-on swap.
Best for: Small portable tire inflator hose repair on bikes, motorcycles, and cars when the hose inner diameter and pressure use match the listing.
Chuck Mates Premium Quick-Connect Accessory
Best quick-connect speed clip Brass
Chuck Mates is a compact tire inflator chuck accessory for buyers who want a faster clip-style connection on standard Schrader valves. The product data lists brass material, an 8V1 standard Schrader valve thread, 26 g item weight, and a 2-year warranty description.
- ASINB0CYDXGGH2
- BrandSKOG
- Price$14.99
- Rating4.6 out of 5 stars (797)
- Designed as an inflator speed clip in the product data.
- Connects to standard Schrader-type air valves according to the listing.
- Compact and portable accessory format.
- Not listed as a 1/4" NPT compressor chuck.
- No gauge or hose is included.
- Compatibility with your exact inflator end should be checked before buying.
Best for: People who want a quick Schrader speed-clip accessory rather than a full replacement hose or gauge inflator.

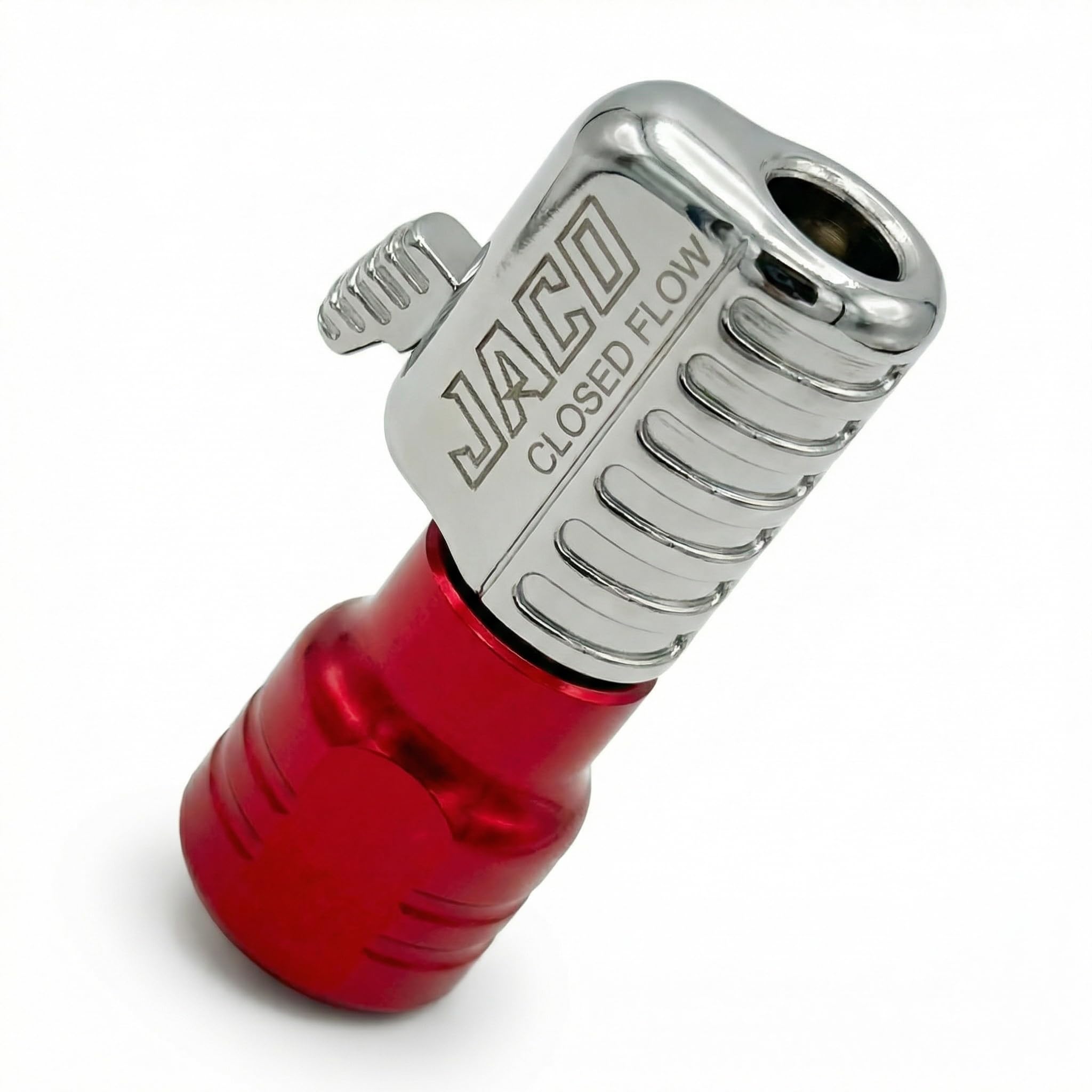

JACO Lightning S2 Quick-Connect Tire Air Chuck
Best compressor chuck Closed flow
The JACO Lightning S2 is the best match when the job is an air compressor tire inflator chuck, not a portable 12V inflator adapter. The product data lists 1/4" F-NPT, standard Schrader compatibility, closed-flow check-valve behavior, quick-release button, 360-degree swivel, and 160 PSI maximum pressure.
- ASINB0DSGKMV9H
- BrandJACO Superior Products
- Price$24.99
- Rating4.6 out of 5 stars (126)
- 1/4" F-NPT threaded end for compressor hose or quick-connect fittings.
- Closed-flow design for direct compressor airline use.
- Quick-release and swivel features are listed in the product data.
- Product data says not for use with 12-volt inflators.
- Product data says choose open flow for pneumatic tire inflators.
- Not compatible with bicycle Presta valves according to the listing.
Best for: Shop air and compressor-hose setups where a closed-flow standard Schrader chuck is the right connection.
AstroAI Digital Tire Pressure Gauge with Inflator, 3-250 PSI
Best complete gauge inflator 3-250 PSI
The AstroAI is not just a replacement chuck. It is a full tire inflator gauge assembly with a straight locking chuck, gauge, hose, and bleed valve. That makes it a better choice when you want to replace a basic inflator chuck with a tool that can inflate, deflate, and check pressure from one handle.
- ASINB07D3PVBJ4
- BrandAstroAI
- Price$23.99
- Rating4.6 out of 5 stars (34,450)
- Includes straight locking chuck, gauge, hose, and bleed valve.
- 3-250 PSI range is listed in the product data.
- Standard Schrader compatibility is listed.
- Not just a small replacement chuck.
- Requires an air compressor connection for inflation.
- NPT compatibility text in the JSON is partially garbled, so confirm fitting size before buying.
Best for: Buyers who want a tire inflator chuck with pressure gauge instead of a simple adapter.
Milton S-506 Dual Head Tire Inflator Gauge
Best dual chuck tire inflator 10-160 PSI
The Milton S-506 is the most relevant option here for a dual chuck tire inflator. The product data lists a dual-head chuck for easier valve access, heavy-duty construction, a full-swivel chuck, a 15-inch hose, and a 10-160 PSI analog gauge.
- ASINB0002SRL20
- BrandMilton
- Price$55.83
- Rating4.7 out of 5 stars (4,654)
- Dual-head chuck helps make tire valves more accessible.
- 15-inch hose and full-swivel chuck are listed.
- Gauge and valve cartridges are listed as replaceable parts.
- It is a full inflator gauge, not a small chuck adapter.
- Price is higher than simple replacement chucks in the provided data.
- Not a digital gauge.
Best for: Shop users and buyers searching for a central pneumatic dual chuck tire inflator style tool, where dual-head access and a gauge matter.
How to Choose a Tire Inflator Chuck
The safest way to choose is to identify the connection you already have. Do not buy by looks alone. A portable tire inflator chuck, a 1/4-inch hose barb, an 8V1 Schrader clip, and a 1/4-inch NPT compressor chuck are different connection types.
For twist-on portable inflators
Look for a fine-thread adapter that converts the existing screw-on end to a lock-on chuck. The LUMITECO hose adapter is the clearest match in the available product data.
For hose repair
Use a hose-barb chuck only when the hose inner diameter matches. The LUMITECO 1/4" barb chuck is listed for 1/4" ID hose repair.
For air compressors
Choose a 1/4-inch NPT air compressor tire inflator chuck or a full inflator gauge. Check open-flow vs closed-flow before connecting it to your hose.
For pressure control
If you need to read pressure while inflating, buy a tire inflator with gauge rather than only a replacement chuck. See the full air chuck with gauge guide.
Tire Inflator Chuck Compatibility
Most products in this guide target standard Schrader valves. That covers many cars, bikes, motorcycles, SUVs, pickups, RVs, and portable inflator setups, but it does not automatically cover Presta bicycle valves, large-bore heavy equipment valves, or every proprietary inflator hose.
| Compatibility item | What to check | Why it matters |
|---|---|---|
| Valve type | Schrader, Presta, large bore, or another valve style | Most selected products are for standard Schrader valves, not Presta. |
| Inflator hose end | Twist-on fine thread, hose barb, NPT, quick plug, or built-in chuck | A twist-on adapter will not replace a hose-barb repair part unless the connection matches. |
| Open flow vs closed flow | Whether air should flow continuously or only when the chuck is engaged | Closed flow suits many direct compressor hoses; open flow often suits inflator gauges and some portable inflator setups. |
| Pressure limit | Chuck rating, hose rating, compressor output, and tire pressure limit | The LUMITECO hose-barb product says use under 200 PSI and heavy truck/vehicle forbidden. |
| Gauge need | Whether your inflator already has a gauge | If not, a full inflator gauge may be safer and easier than a chuck-only replacement. |
For fitting sizes, NPT threads, and quick-connect differences, use Revviso’s air chuck fittings guide. For the bigger inflator category, see the tire inflator buying guide.
Mistakes to Avoid
- Buying a hose-barb chuck for a screw-on hose: A hose barb usually needs clamp-style installation and the correct hose inner diameter.
- Buying a twist-on adapter for direct pump output: Some adapters are designed to attach to the original hose end, not directly to a pump.
- Confusing 8V1 Schrader thread with 1/4-inch NPT: One is valve-side sizing; the other is usually air-line fitting size.
- Ignoring flow type: A closed-flow chuck can be wrong for an inflator gauge that expects open flow.
- Using light-duty portable inflator chucks on heavy trucks: Follow the product pressure and vehicle-use limits from the listing.
- Skipping leak checks: After replacing a chuck, test the connection with low pressure first and stop if the hose, clamp, or valve leaks.
Safety note
Always stay within the tire sidewall pressure, wheel rating, hose rating, chuck rating, and compressor limits. Do not modify a tire inflator hose in a way that bypasses the gauge, pressure control, or shutoff behavior. If the replacement chuck leaks, slips, or does not match the thread cleanly, stop and use the correct fitting.
Related Revviso Guides
Final Verdict
The best tire inflator chuck is the one that matches your existing hose and valve, not simply the one with the strongest-looking clamp. For most portable inflator screw-on hoses, the LUMITECO locking hose adapter is the cleanest match from the available product data. For hose-barb repair, the LUMITECO 1/4" barb chuck is more appropriate. For compressor lines, the JACO Lightning S2 is a better fit. For pressure reading and inflation control, choose a full inflator gauge such as the AstroAI or Milton instead of a chuck-only part.
FAQ
What is a tire inflator chuck?
A tire inflator chuck is the connector at the end of a tire inflator hose or air compressor hose that attaches to the tire valve. It creates the seal that lets air move into the tire.
Can I replace the chuck on a portable tire inflator?
Yes, but only if the replacement matches the original hose connection. Some portable inflators use twist-on fine threads, while others require hose-barb repair or a specific adapter.
What is the best tire inflator chuck for a screw-on hose?
Based on the available product data, the LUMITECO locking tire chuck with rubber hose is the best match for converting a screw-on or twist-on portable inflator hose to a lock-on connection.
What is a 1/4-inch hose-barb tire inflator chuck for?
A 1/4-inch hose-barb chuck is for hose repair when the hose inner diameter matches the barb. It is not the same as a 1/4-inch NPT compressor fitting.
Do I need open flow or closed flow?
Use open flow when the inflator gauge or pump controls airflow and expects air to pass through the chuck. Use closed flow when the chuck connects directly to a compressor line and should stop air until attached.
Is a tire inflator chuck the same as a tire inflator with gauge?
No. A chuck is only the valve connector. A tire inflator with gauge includes the chuck plus a hose, pressure gauge, trigger, and often a bleed valve.
Will these tire inflator chucks fit Presta valves?
Not unless the product specifically says so or you use the correct adapter. The products selected here are mainly listed for standard Schrader valves.
What is the best dual chuck tire inflator?
From the provided product data, the Milton S-506 is the best dual chuck tire inflator option because it includes a dual-head chuck, 15-inch hose, and 10-160 PSI gauge.
