Best Dually Air Chuck for Dual Wheels and Semi Trucks
A dually air chuck needs to reach inner and outer valve stems without forcing the stem sideways. Based on the available product data, the best choices are dual-head or dual-foot tools with enough hose length, the right pressure range, and compressor fittings that match your setup.
The best dually air chuck is usually a dual-head or dual-foot chuck because dual wheels often have one valve facing outward and another tucked inside the wheel set. From the provided product data, the AstroAI T3 is the best value pick, while the Milton S-576D is the strongest premium digital inflator gauge for dual wheels.
Quick Answer
For dual wheels, choose a dual-head or dual-foot air chuck instead of a straight car tire chuck. Pick the AstroAI T3 if you want a value inflator gauge with straight and 30-degree reverse chuck access. Pick the Milton S-576D if you want a higher-range digital dual-foot gauge with a 15-inch hose.
Price and ratings were captured from the provided product data and may change.
Why Dual Wheels Need a Special Dually Air Chuck
Dual wheels usually place two valve stems in different positions. The outer valve may be easy to reach, while the inner valve can sit behind the outside wheel, point inward, or require a reverse-angle head. A dually air chuck solves that access problem by using a dual-head, dual-foot, or angled chuck.
A standard straight chuck can work on exposed valves, but it often becomes awkward on dually trucks, RVs, trailers, and some commercial wheels. For the broader connector category, see Revviso’s guide to what an air chuck is.
Dually Air Chuck vs Dual-Head Inflator Gauge
A standalone dual-head chuck is only the valve connector. A dual-head inflator gauge adds the hose, pressure display, trigger, and sometimes a deflate button. Choose the gauge version if you want to inflate and measure with one tool.
| Setup | Best for | What it includes | Main limitation |
|---|---|---|---|
| Dual-head air chuck kit | Users who already have a compressor hose, regulator, and separate pressure gauge. | Usually a dual-head chuck, ball chuck, plugs, or sealing tape depending on the kit. | You still need a way to read and control pressure. |
| Dual-head inflator gauge | Home garages, RV owners, and truck users who want pressure reading, inflation, and deflation in one tool. | Gauge, hose, dual-head or dual-foot chuck, trigger, and sometimes a bleed or deflate button. | Costs more than a simple chuck kit and must match your compressor fitting. |
Dually Air Chuck Comparison Table
This table uses only details captured in the available product JSON, including price, rating, pressure range, chuck type, fitting notes, and limitations.
| Product | Best for | Chuck / reach notes | Gauge range | Fitting notes | Price and rating | Main limitation | CTA |
|---|---|---|---|---|---|---|---|
| AstroAI T3 Heavy-Duty Gauge | Best value dually air chuck with gauge | Straight chuck and 30-degree reverse chuck for inner and exterior dual wheels. | 10-120 PSI | 1/4-inch quick-connect fitting; title lists compatibility with 1/4-inch NPT air compressor. | $19.99; 4.3 stars; 364 reviews. | Not a 200-255 PSI gauge. | Check price |
| Milton S-576D Pro Digital | Best premium digital dual-foot gauge | 6-inch dual foot chuck with 360-degree swivel and 15-inch hose for dually tires. | 0-255 PSI | Description lists 1/4-inch NPT female air inlet; Milton 727 plug recommended separately. | $88.45; 4.4 stars; 122 reviews. | Availability was not cleanly specified by the available product data. | Check price |
| Milton S-506 Dual Head Gauge | Best classic analog dual-head gauge | Dual-head chuck, full-swivel chuck, and 15-inch hose. | 10-160 PSI | 1/4-inch NPT air inlet listed in description. | $55.83; 4.7 stars; 4,654 reviews. | Analog scale reads in 2-lb increments. | Check price |
| Milton S-530 Compact Digital | Best compact digital Milton option | Dual head air chuck available, 15-inch rubber hose, 360-degree swivel digital gauge. | 0-255 PSI | Description lists 1/4-inch NPT female air inlet. | $82.23; 4.2 stars; 231 reviews. | Higher price than most value options in the data. | Check price |
| GERCHWAY Tire Inflator Gauge | Best 100 PSI analog gauge with dual-head chuck | Dual-head air chuck, removable air chuck, and 360 swivel air chuck listed. | 5-100 PSI in comparison text; 100 PSI in title | 1/4-inch NPT compressor outputs; includes 1/4-inch NPT quick-connect air hose plug. | $26.99; 4.5 stars; 4,399 reviews. | Better suited to tires around 35-50 PSI per product data, not high-pressure commercial tires. | Check price |
| LUMITECO 2-Pack Heavy Duty Air Chuck Set | Best dual-head chuck kit | Includes dual-head closed-flow air chucks and ball-head air chucks. | No gauge included. | 1/4-inch female NPT; includes male quick plugs and sealing tape. | $9.99; 4.6 stars; 457 reviews. | Connector kit only, so you still need a gauge or inflator. | Check price |
| EVOULTES 2-Way Air Chuck Set | Best budget dual-head set | Includes one dual-head closed-flow chuck and one ball-head chuck. | No gauge included. | Female 1/4-inch NPT thread; includes two standard 1/4-inch male quick plugs. | $7.99; 4.6 stars; 771 reviews. | Connector kit only; not a complete inflator gauge. | Check price |
| Hrwfnty 2-Pack Ball Foot Air Chuck Set | Best low-cost closed ball chuck set | Ball foot chucks rather than dual-foot dually-specific chucks. | No gauge included. | 1/4-inch NPT female; includes male quick plugs and sealing tape. | $5.98; 4.7 stars; 140 reviews. | Not a dual-head reach tool, so it is weaker for inner dually valve stems. | Check price |
Best Air Chuck for Dual Wheels: Product Details

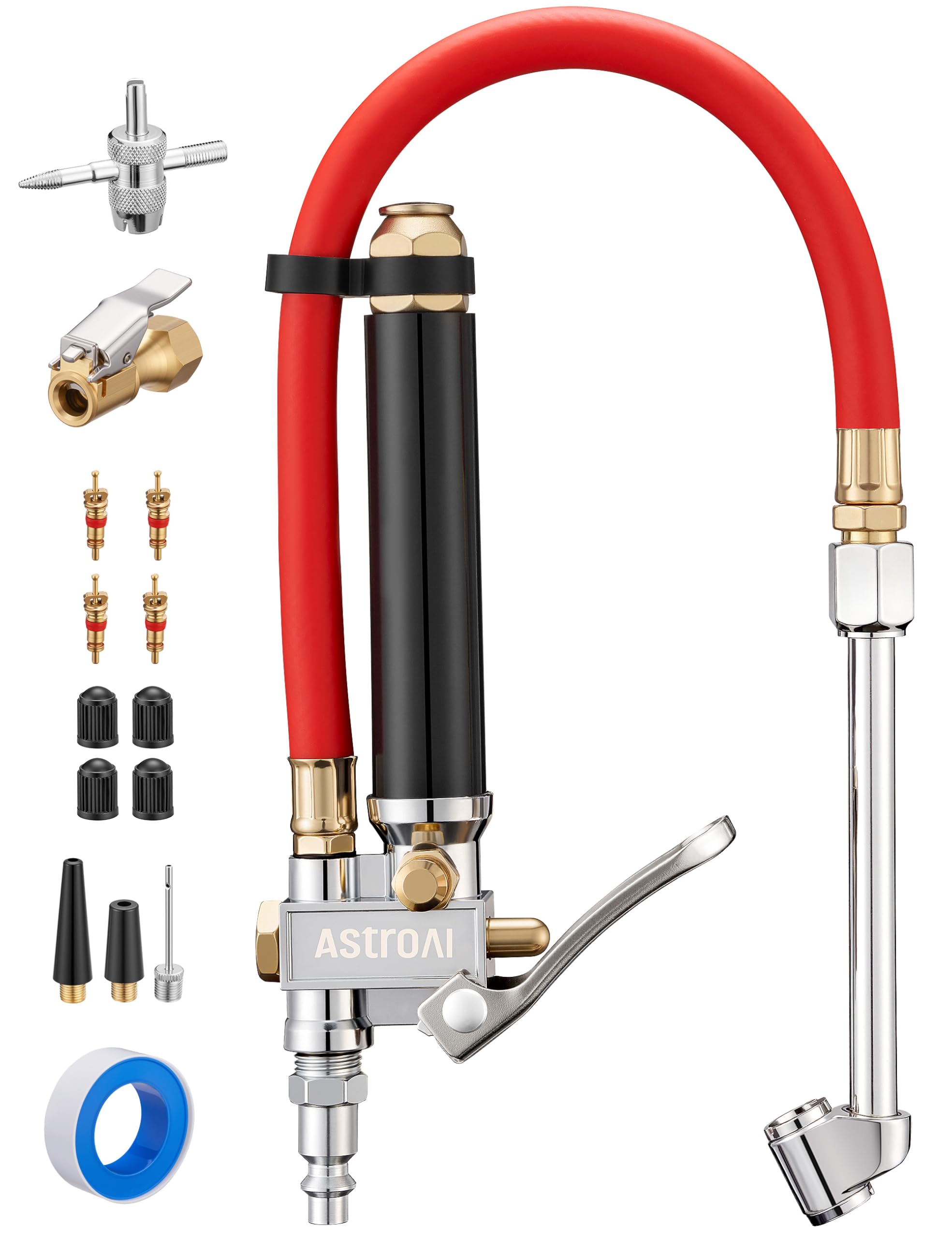

AstroAI T3 Heavy-Duty Tire Pressure Gauge with Inflator ASIN B0F386K4Y3
Best for: RVs, trucks, SUVs, and dual wheels where a straight and reverse chuck layout helps reach inner and outer valve stems.
- BrandAstroAI
- Gauge range10-120 PSI
- ChuckStraight and 30-degree reverse
- AvailabilityIn Stock
- Dual-head chuck is listed for inner and exterior dual wheels, tight angles, and hard-to-reach spaces.
- Integrates tire pressure measurement, inflation, and deflation.
- Accessories include valve cores, valve stem caps, valve core tool, brass chuck, sealing tape, cone nozzles, and ball needle.
- Pressure range tops out at 120 PSI.
- Mechanical gauge is not a digital display.
- Accuracy varies by pressure range according to the listing.
Compatibility note: Product data lists a 1/4-inch quick-connect fitting and compatibility with a 1/4-inch NPT air compressor in the title. An air pump must be connected to inflate tires.
Milton S-576D Pro Digital Tire Inflator ASIN B075RW5M83
Best for: buyers who want a high-range digital inflator gauge with a dual-foot chuck and 15-inch hose for dually tire access.
- BrandMilton
- Gauge range0-255 PSI
- Chuck6-inch dual foot
- Hose15 inches
- 6-inch dual foot chuck with 360-degree swivel and 15-inch hose is listed for dually tires.
- Backlit display, auto-on, auto-off, and 0.1 PSI display increments are listed.
- Product data says it meets ANSI/ASME B40.1 standards.
- Highest listed price among the selected products.
- Availability was not specified cleanly by the available product data.
- Milton 727 plug is recommended separately in the description.
Compatibility note: Product data lists a 1/4-inch NPT female air inlet and a 15-inch hose. This is a full inflator gauge, not a standalone chuck.
Milton S-506 Tire Inflator Gauge with Dual Head Air Chuck ASIN B0002SRL20
Best for: users who want a classic analog dual-head inflator gauge for trucks, trailers, motor homes, and garage use.
- BrandMilton
- Gauge range10-160 PSI
- Hose15 inches
- AvailabilityIn Stock
- Dual-head chuck is listed to make tire valves more accessible.
- Full-swivel chuck, magnifying window lens, and heavy-duty construction are listed.
- Gauge and valve cartridges can both be replaced according to the listing.
- Analog gauge reads in 2-lb increments.
- Dual-head tire chucks may not inflate a completely flat zero-pressure tire according to the product description.
- No digital backlight or battery-powered display.
Compatibility note: Product description lists a 1/4-inch NPT air inlet and use cases including trucks, trailers, motor homes, motorcycles, ATVs, and more.
Milton S-530 Compact Digital Tire Inflator ASIN B07RSSSDB2
Best for: users who want a compact digital Milton gauge with a 255 PSI range and dual-head chuck availability.
- BrandMilton
- Gauge range0-255 PSI
- Hose15-inch rubber hose
- AvailabilityIn Stock
- Product data lists 360-degree swivel digital pressure gauge and 0.1 PSI display resolution.
- 255 PSI rated 1/4-inch x 15-inch hose is listed.
- Includes 2 AAA batteries according to the listing.
- Higher listed price than several value options.
- Review average is lower than Milton S-506 in the provided data.
- Digital display means battery dependence.
Compatibility note: Product description lists a 1/4-inch NPT female air inlet and dual or single head air chuck availability.

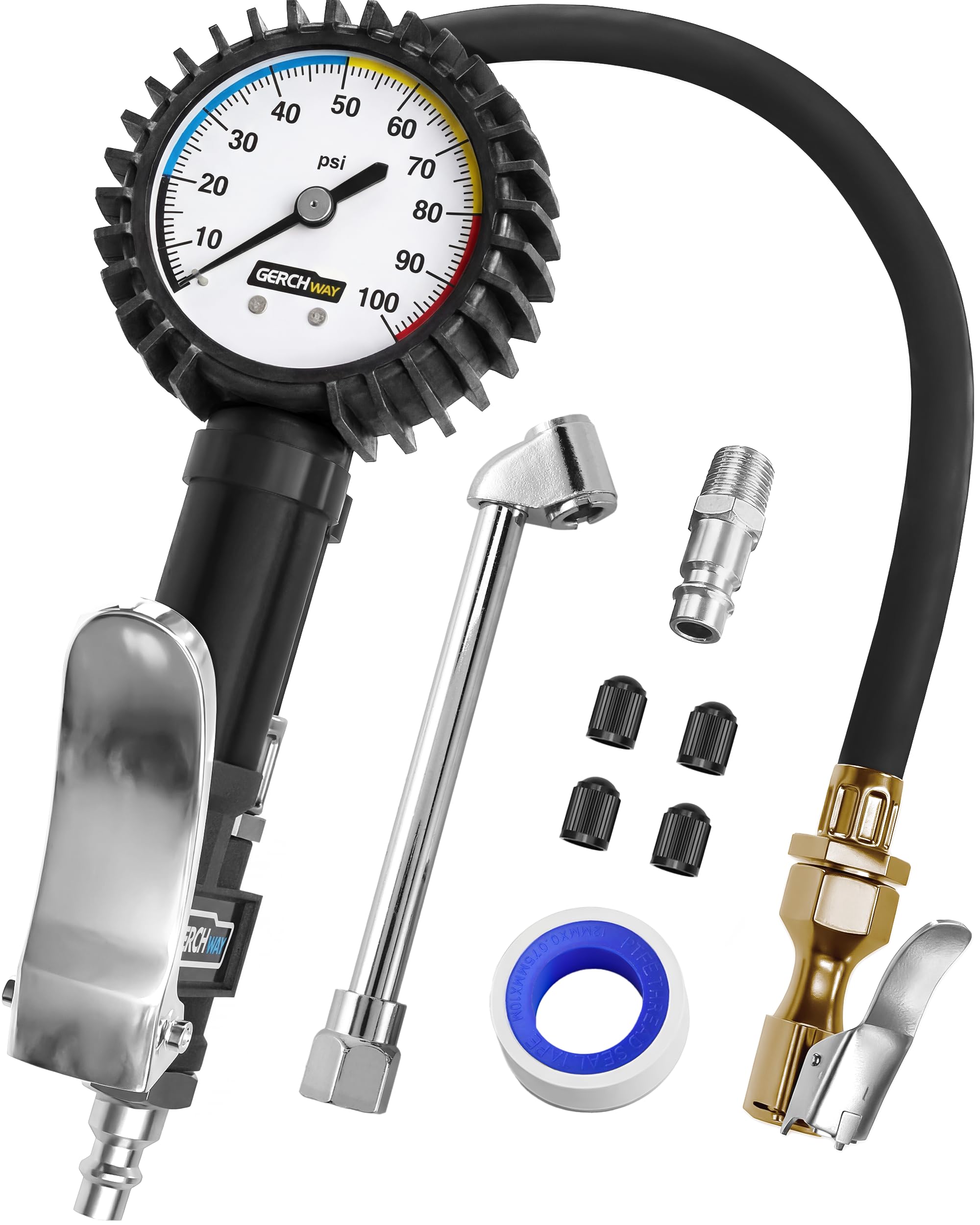

GERCHWAY Tire Inflator with Pressure Gauge ASIN B07DC5HSJD
Best for: users who want a 100 PSI analog tire inflator gauge with a dual-head chuck and no battery dependence.
- BrandGERCHWAY
- Gauge range100 PSI
- Thread style1/4-inch NPT
- AvailabilityIn Stock
- Included components list dual-head air chuck, 1/4-inch NPT quick-connector, tape roll, and valve caps.
- Product data says it measures, inflates, and deflates without batteries.
- Listing notes that 100 PSI range is better suited for many tires around 35-50 PSI.
- Not a high-range truck gauge like the 255 PSI Milton digital models.
- Analog resolution is listed as 1 PSI in comparison text.
- Better for moderate tire pressures than high-pressure commercial applications.
Compatibility note: Product data lists compatibility with all 1/4-inch NPT compressor outputs and includes a 1/4-inch NPT quick-connect air hose plug.
LUMITECO 2-Pack Heavy Duty Air Chuck Set ASIN B0BFDNKXDD
Best for: compressor users who already have a gauge or inflator body and need dual-head closed-flow chuck options.
- BrandLUMITECO
- Thread1/4-inch female NPT
- Flow styleClosed flow
- AvailabilityIn Stock
- Includes dual-head closed-flow air chucks and ball-head air chucks.
- Includes male quick plugs/fittings and sealing tape.
- Dual-head air chuck is listed for awkwardly located tire valves.
- No pressure gauge included.
- Not a complete inflator tool by itself.
- Requires matching your compressor hose and pressure-control setup.
Compatibility note: Product data lists 1/4-inch female NPT threads for connection to air lines, air compressors, or tire inflator gauges.

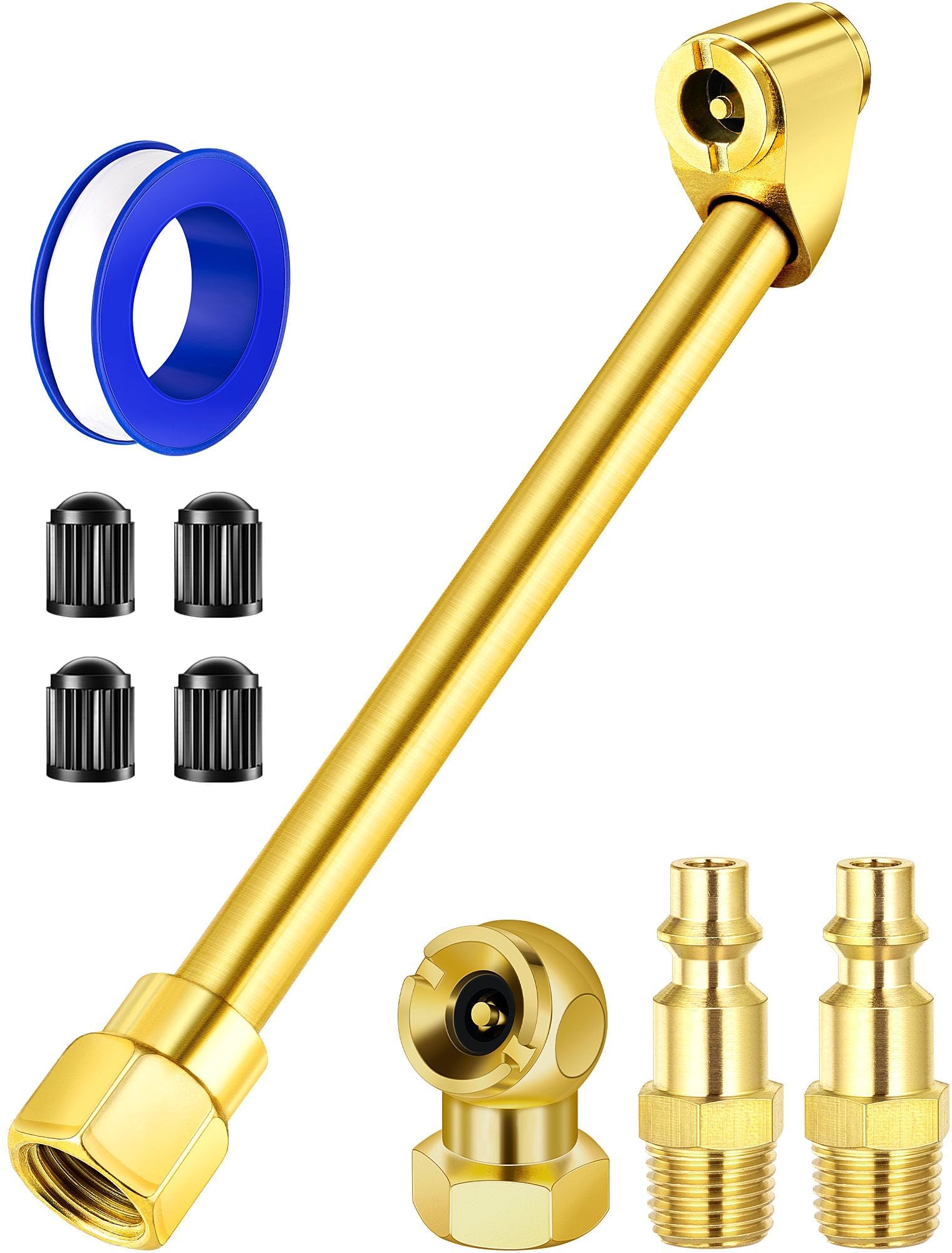

EVOULTES 2-Way Connection Air Chuck Set ASIN B0CLXXVJ5D
Best for: a low-cost dual-head and closed-ball chuck kit for compatible compressor hoses or tire inflator gauges.
- BrandEVOULTES
- ThreadFemale 1/4-inch NPT
- Max pressure noteUp to 250 PSI
- AvailabilityIn Stock
- Package includes one dual-head closed-flow air chuck, one ball-head chuck, two male quick plugs, and sealing tape.
- Product data lists standard 1/4-inch NPT specification.
- Listed for Schrader valves and various vehicles, bikes, motorcycles, cars, and compressor accessories.
- No gauge included.
- Not dually-specific in the same way as the AstroAI T3 or Milton dual-foot gauges.
- Requires separate pressure measurement and control.
Compatibility note: Product data says both chucks have female 1/4-inch NPT threads and includes male quick plugs for air-line couplers.

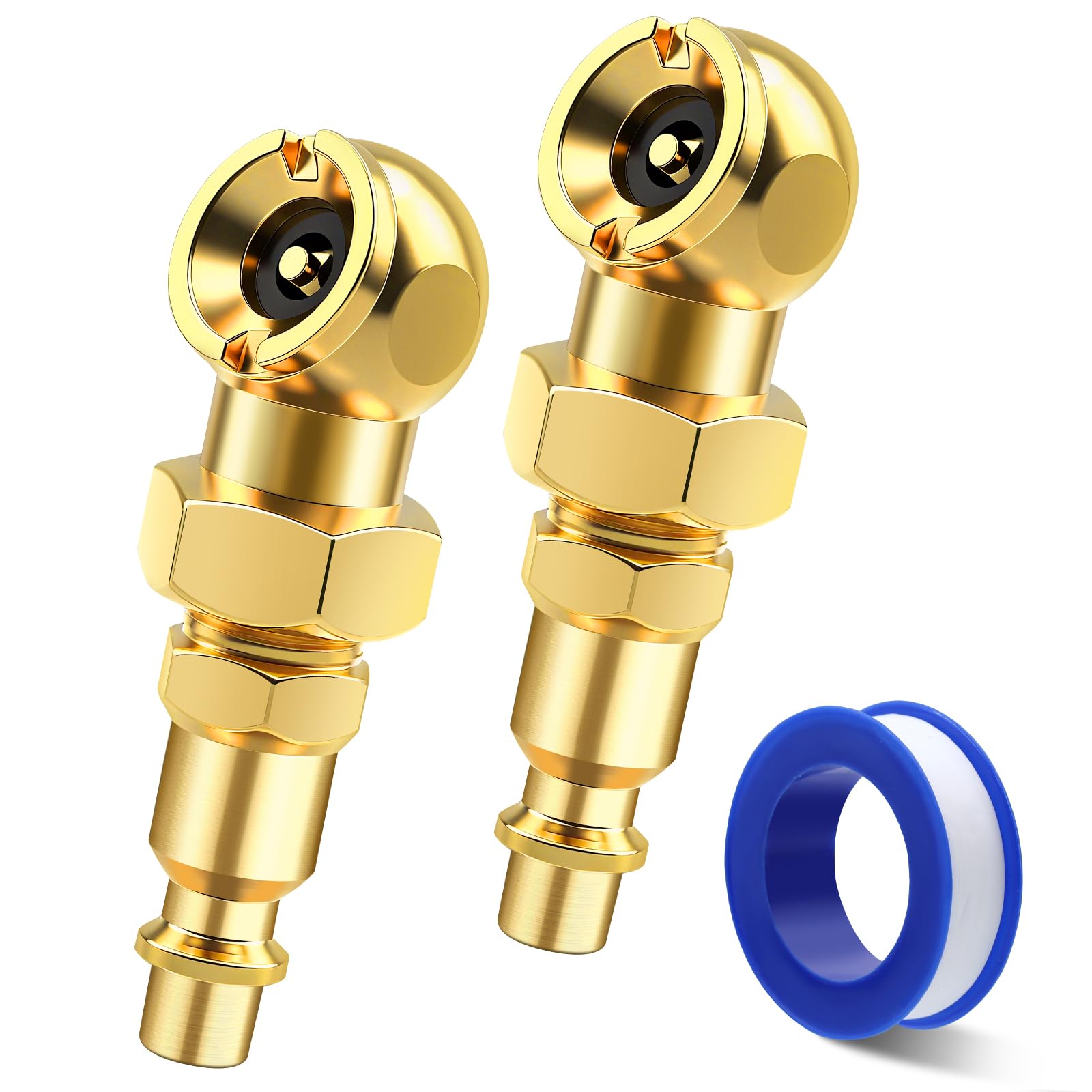

Hrwfnty 2-Pack Ball Foot Air Chuck Set ASIN B0FL7KKJ36
Best for: low-cost closed ball chuck use when you do not need a true dual-head dually chuck.
- BrandHrwfnty
- Thread1/4-inch NPT female
- Max pressure note300 PSI
- AvailabilityIn Stock
- Includes two ball foot air chucks, two male quick plugs, and sealing tape.
- Closed ball structure and shutoff valve behavior are listed.
- Lowest listed price among the selected products.
- Not a dual-head or dual-foot chuck for inner dually valve stems.
- No gauge included.
- Manual hand-tightened lock type is less convenient than a dedicated dual-head inflator gauge.
Compatibility note: Product data lists bikes, cars, trucks, and more, but this is best treated as a budget closed-ball chuck set rather than the main solution for dual wheels.
How to Choose the Best Dually Air Chuck
The best dually air chuck depends on reach, pressure range, hose length, and whether you already own a gauge. Start with the valve access problem, then match the tool to your compressor fitting.
Choose dual-head or dual-foot reach
For dual wheels, one head should reach the outer valve and the other should reach the inner valve. Straight and reverse-angle heads are more useful than a basic straight chuck.
Match the pressure range
Passenger tires and some RV tires may not need 255 PSI. Truck and commercial applications may need more gauge range. Always follow the vehicle or tire/application pressure guidance.
Confirm the compressor fitting
Product data in this set includes 1/4-inch NPT, 1/4-inch female NPT, 1/4-inch quick-connect fittings, and recommended plugs. Do not force mismatched threads.
Best by Use Case
- Best for dual wheels on a budget: AstroAI T3, because it lists straight and 30-degree reverse chuck access for inner and exterior dual wheels.
- Best premium dually gauge: Milton S-576D, because it lists a 6-inch dual foot chuck, 15-inch hose, 0-255 PSI range, and backlit digital display.
- Best classic analog gauge: Milton S-506, because it has a dual-head chuck, 15-inch hose, 10-160 PSI range, and replaceable gauge and valve cartridges.
- Best simple chuck kit: LUMITECO 2-Pack Heavy Duty Air Chuck Set, because it includes dual-head closed-flow chucks, ball chucks, quick plugs, and sealing tape.
- Best budget connector kit: EVOULTES 2-Way Connection Air Chuck Set, because it includes a dual-head closed-flow chuck, ball-head chuck, plugs, and tape at a low listed price.
- Best for home garage tires around moderate pressures: GERCHWAY 100 PSI analog gauge, if its pressure range and dual-head chuck match your vehicle needs.
Compatibility: Dually Tires, Semi Trucks, RVs, and Compressors
Compatibility is about more than whether the chuck fits a Schrader valve. For dual wheels, you also need the right head angle, enough hose reach, an appropriate gauge range, and a compressor setup that can support the tire volume and target pressure.
Schrader valves and dual wheels
The selected products are built around automotive-style tire inflation and Schrader valve use. Dual wheels usually need a dual-head or dual-foot chuck because inner and outer valve stems may face opposite directions or sit at awkward depths.
NPT fittings and compressor hoses
Several products list 1/4-inch NPT, 1/4-inch female NPT, or 1/4-inch quick-connect fittings. If your hose or coupler does not match, use the correct adapter instead of cross-threading. Revviso’s air chuck fittings guide explains thread and quick-connect compatibility.
Truck and heavy-duty inflator power
A dually air chuck solves valve access, but it does not make a weak compressor fill large tires quickly. For compressor power, duty cycle, and truck tire inflation speed, use Revviso’s heavy-duty truck tire inflator guide.
Mistakes to Avoid When Buying an Air Chuck for Dual Tires
- Buying a straight chuck for inner duals: exposed outer valves may be easy, but inner stems usually need reverse-angle or dual-foot access.
- Ignoring gauge range: a 100 PSI gauge may be fine for some tires but wrong for higher-pressure truck or commercial applications.
- Assuming a chuck kit is a full inflator: LUMITECO and EVOULTES kits need a separate gauge or inflator body.
- Forcing a valve stem sideways: stop if the chuck angle requires bending the valve stem to make contact.
- Skipping compressor compatibility: confirm NPT fitting, quick-connect style, and whether a plug is included or recommended separately.
- Inflating without monitoring pressure: use a reliable gauge and follow the vehicle placard or tire/application pressure guidance.
Safety Notes for Dually Tire Inflation
Use a regulated air source, stand clear of the tire sidewall when possible, and check pressure with a gauge that covers your target range. Dual wheels can hide valve damage, extension issues, or leaks, so inspect both inner and outer stems before adding air.
Do not modify a chuck, hose, fitting, or valve stem to force compatibility. Stop if the chuck leaks, slips, or requires excessive pressure against the stem. If tire pressure requirements are high or the tire is damaged, use professional tire service instead of improvising.
Final Verdict
Based on the available product data, the AstroAI T3 is the best dually air chuck value pick because its straight and 30-degree reverse chuck are specifically listed for inner and exterior dual wheels. The Milton S-576D is the stronger premium digital option with a 0-255 PSI range, 6-inch dual foot chuck, and 15-inch hose. If you already have a gauge, the LUMITECO dual-head kit is the best simple chuck-kit option.
FAQ
What is the best dually air chuck?
The AstroAI T3 is the best value dually air chuck with gauge from the available product data because it lists a straight chuck and 30-degree reverse chuck for inner and exterior dual wheels.
What is a dual-foot air chuck used for?
A dual-foot air chuck is used to reach tire valves that face different directions, especially on dual wheels, dually trucks, RVs, trailers, and commercial vehicles with hard-to-reach inner stems.
Do dual wheels need a special air chuck?
Usually, yes. Dual wheels often have inner and outer valve stems in awkward positions, so a dual-head, dual-foot, or reverse-angle chuck is easier and safer than a basic straight chuck.
What air chuck is best for semi trucks?
For semi trucks, choose a dual-head or dual-foot chuck with the right pressure range and compressor fitting. The product data here supports dual-wheel access, but compressor power and commercial tire requirements should also be checked.
Is a dual-head inflator gauge better than a standalone chuck?
A dual-head inflator gauge is better if you want to inflate, deflate, and read pressure with one tool. A standalone dual-head chuck is enough only if you already have a reliable gauge and pressure-control setup.
What fitting size do dual-head air chucks use?
Many products in the provided data use 1/4-inch NPT, 1/4-inch female NPT, or 1/4-inch quick-connect fittings. Always verify your hose and coupler before buying.
Can a dual-head chuck inflate a completely flat tire?
Not always. The Milton S-506 product description says dual-head tire chucks may be unable to inflate a completely flat zero-pressure tire because the self-sealing valve may not react without existing pressure.
What pressure range should I choose for dually tires?
Choose a gauge range that covers your target tire pressure with room to spare. Use the vehicle placard or tire/application guidance, and do not rely only on the tire sidewall maximum.
